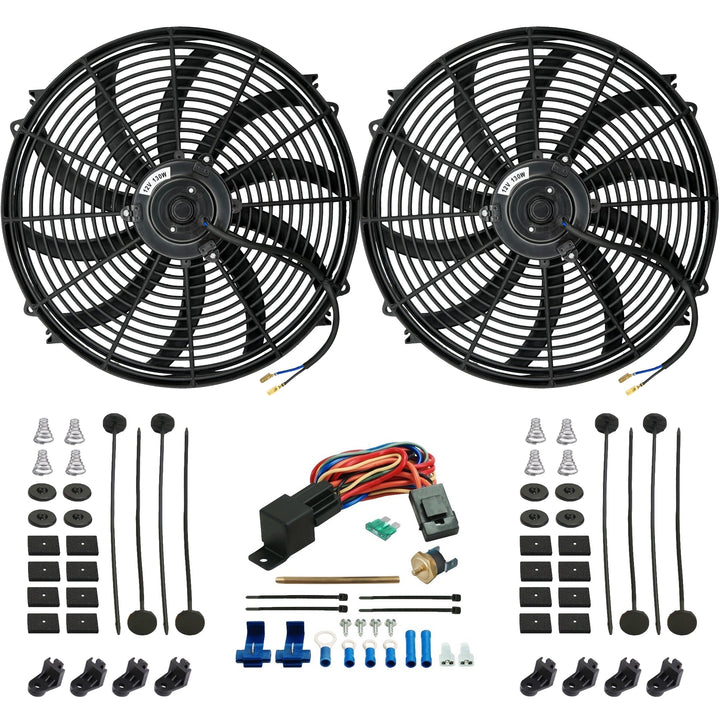

Description
Electric Fan:

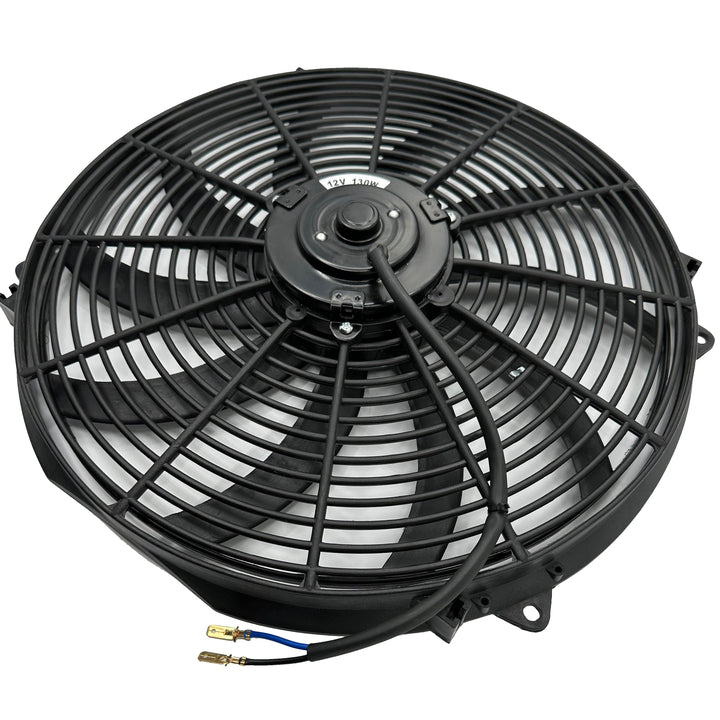

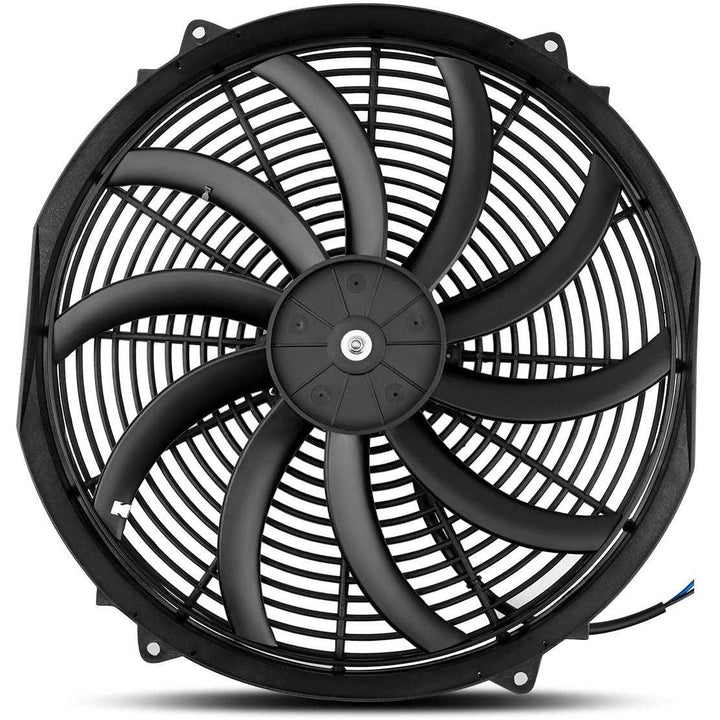

- Universal 12v high performance 16 inch electric radiator cooling fan.

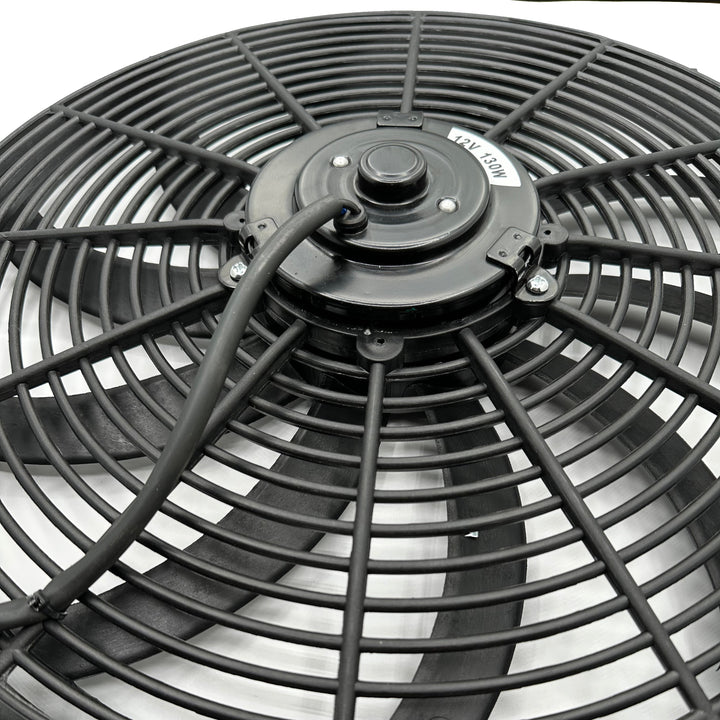

- Upgraded 130 watt motor draws 12 amps producing over 2852 CFM.
- Configured as an air puller by default or reversible to an air pusher.

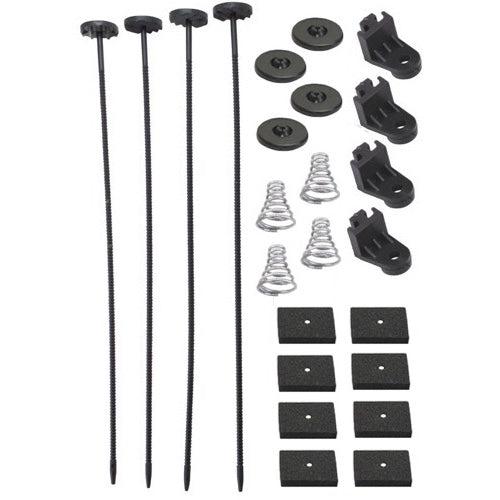

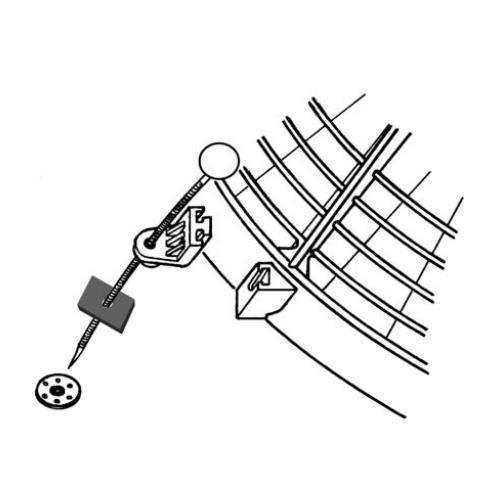

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 16.75" x 16" x 3.2" thickness at center and 1.4" at edge.

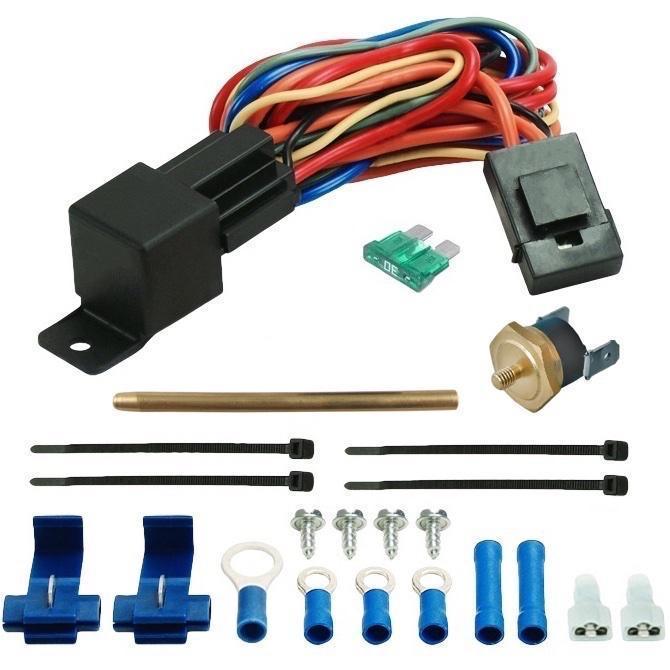

Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal adjustable automotive electric fan thermostat switch sensor.
- Turn-on range of 32-248'F with turn-off always set at 15 degrees less.
- 3 pin design allows for wiring as a normally open or closed circuit.

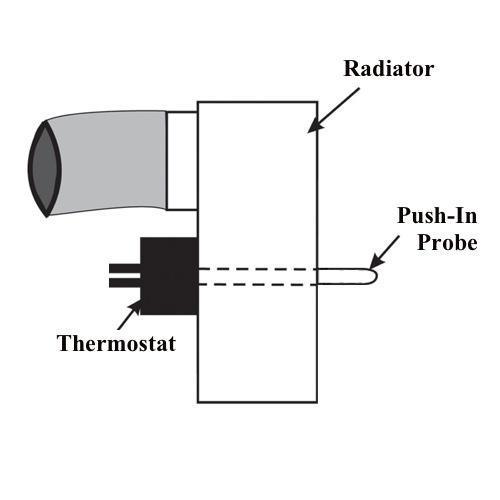

- Probe pushes between radiator fins or inserts into coolant hose line.
- Detailed install instructions, wiring diagram and hardware included.
