Description

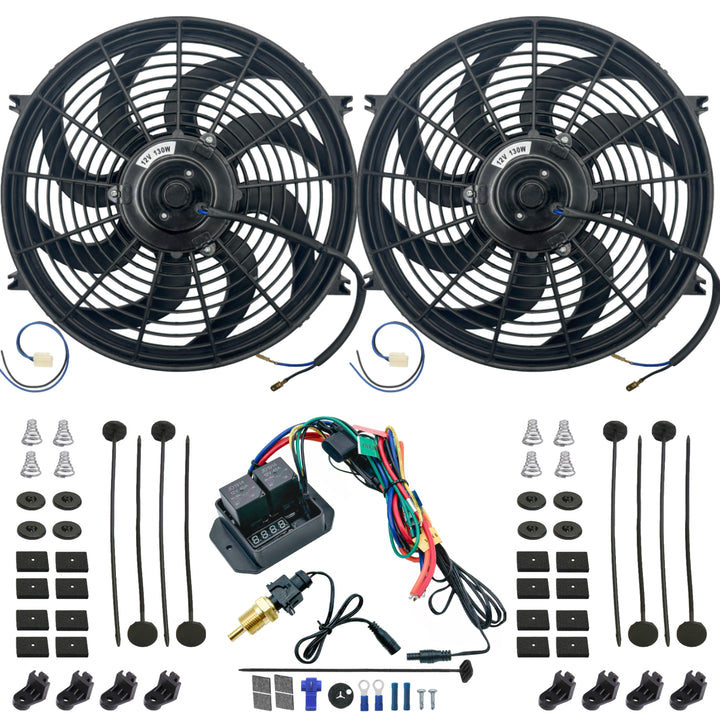

Each Electric Fan:
- American Volt performance 14-15 inch electric radiator cooling fan.
- Upgraded 130 watt motor draws 11 amps and produces 2723 CFM.
- Configured as an air puller by default or reversible to an air pusher.
- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 15" x 14" x 3.2" thickness at center and slim 1.8" at edge.
Wiring Kit:
- 104-230'F digital adjustable electric fan thermostat switch wire kit.
- 1/8 inch NPT thread-in brass temperature sensor threads into port.
- 40 amp relay harness with 14AWG wire powers up to 2 electric fans.
- Maximum 30 amp continuous draw with 30 amp in-line fuse per fan.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
