Dual 10-11 Inch 90w Electric Fans In-Hose Grounding Thermostat Wiring Kit

SKU:
Availability : In Stock Pre order Out of stock

Electric Fan: Universal 12 volt high performance 10 inch slim electric cooling fan. Upgraded 90 watt motor draws...

$89.95
Order in the next [totalHours] hrs %M mins to get it between and

Hose Adapter Size: Choose an option

26mm / 1 Inch
28mm
30mm
32mm / 1.25 Inch
34mm
36mm
38mm / 1.5 Inch
40mm
42mm
44mm / 1.75 Inch

Switch Temperature: Choose an option

140'F On - 125'F Off
150'F On - 135'F Off
160'F On - 145'F Off
170'F On - 155'F Off
180'F On - 165'F Off
190'F On - 175'F Off
200'F On - 185'F Off
210'F On - 195'F Off
Description

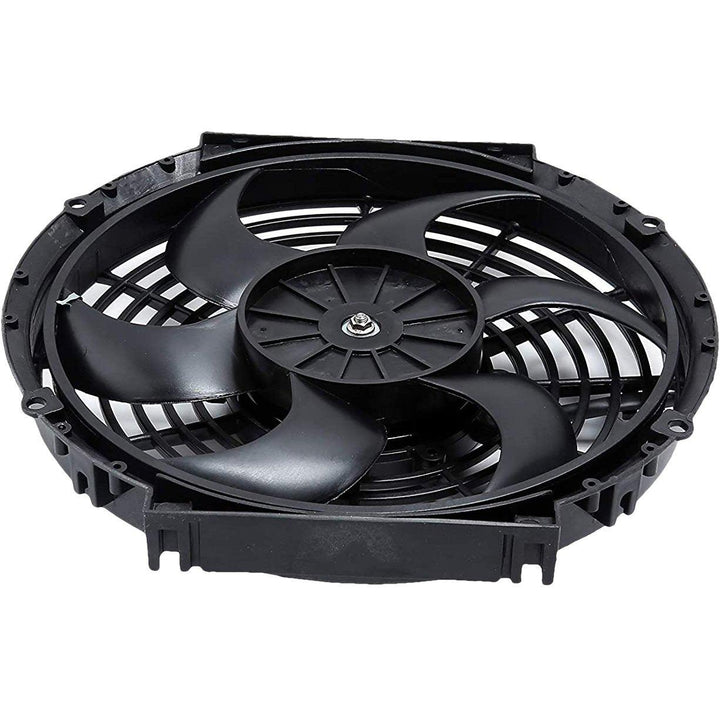

Electric Fan:

  • Universal 12 volt high performance 10 inch slim electric cooling fan.
  • Upgraded 90 watt motor draws 9 amps producing over 1861 CFM.
  • Configured as an air puller by default or reversible to an air pusher.
  • Includes mounting bracket feet and complete cooler fin tie strap kit.
  • Measures 11.5" x 10.75" x 2.5" thickness at center and 1.4" at edge.

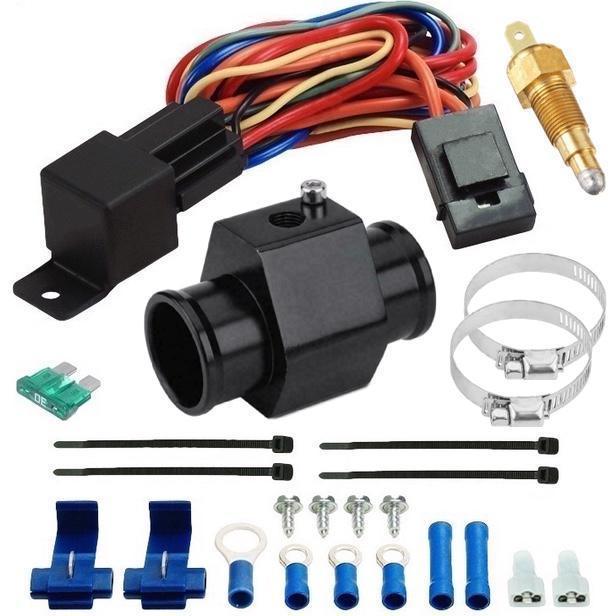

Wiring Kit:

  • Universal automotive electric fan 5-pin 40A relay switch harness kit.
  • 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
  • Maximum 30 amp continuous draw with 30A in-line fuse protection.
  • A/C override or manual toggle switch wire built directly into harness.
  • Installation instructions, wiring diagram and components included.

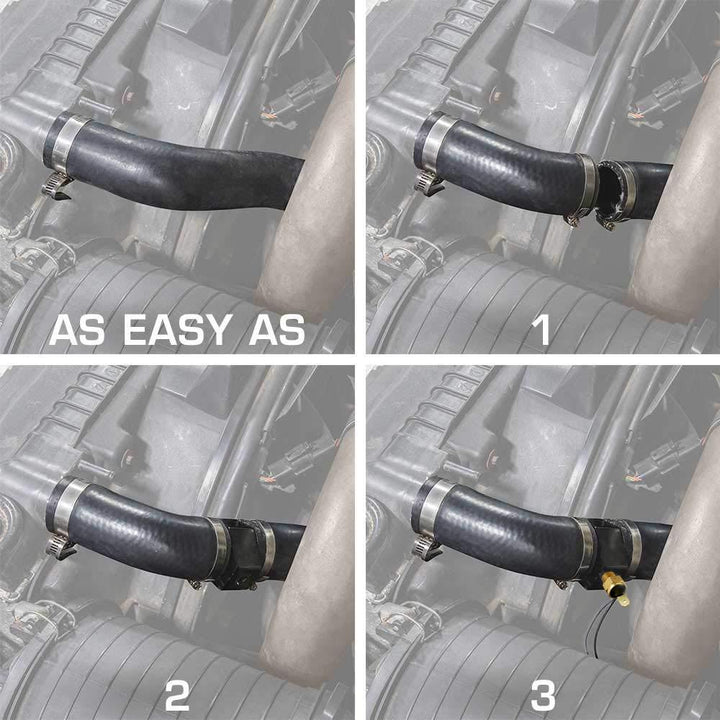

Hose Adapter:

  • Universal radiator hose electric fan thermostat temperature sensor.
  • Anodized aluminum in-line fitting adapter in various diameter sizes.
  • Preset to ground fan or 12v accessory at the selected temperature.
  • Single pin 1/8" inch NPT brass thread-in probe grounding switch.
  • Measures temp of any liquid including oil, water and coolant fluid.
