12 Volt Electric Fan Motors 90-180 Watt 2-4 Bolt Hole Mounting

• Bolt-on replacement 12 volt electric radiator fan motor.
• Includes male and female adapter plugs and pigtail wire.
• Sealed for dust and water resistance to increase longevity.
• 2 or 3 or 4 bolt patterns fit common brand electric fans.
• For automotive uses and general engineering projects.

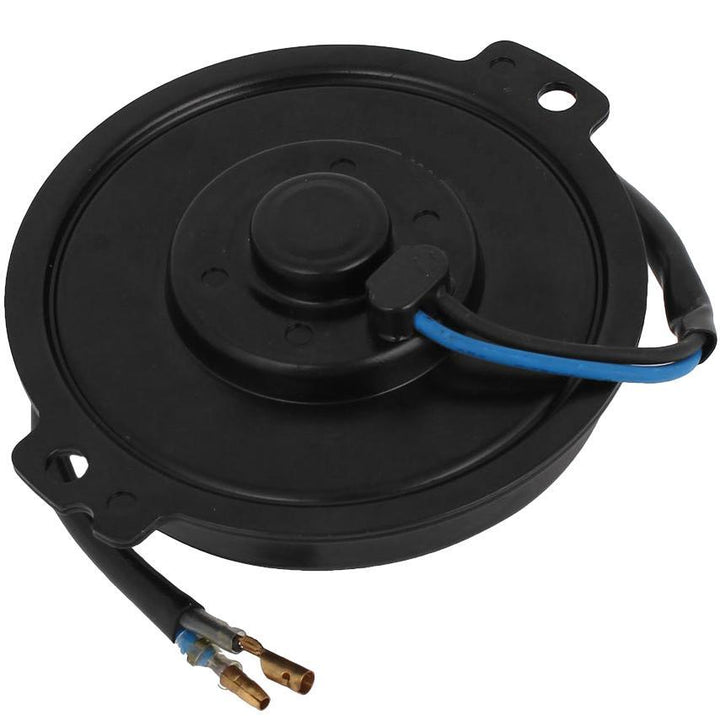

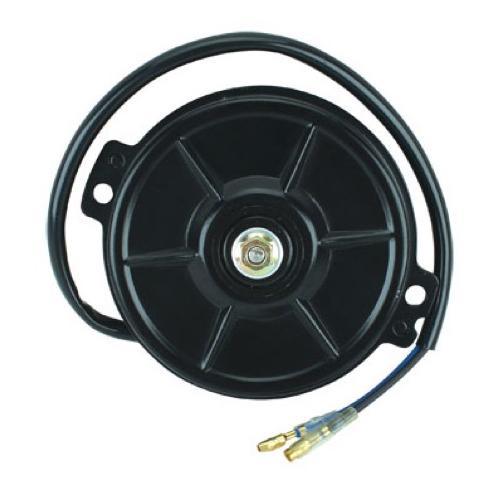

90 Watt, 2-Hole:

• Distance between each hole is 4.5" inches.
• Diameter of the motor housing is 4.25" inches.
• Motor shaft end to end length is 2.25" inches.
• Standard equipment on our 6-13 inch fans.
• Fits electric fan shrouds with a 2 bolt pattern.

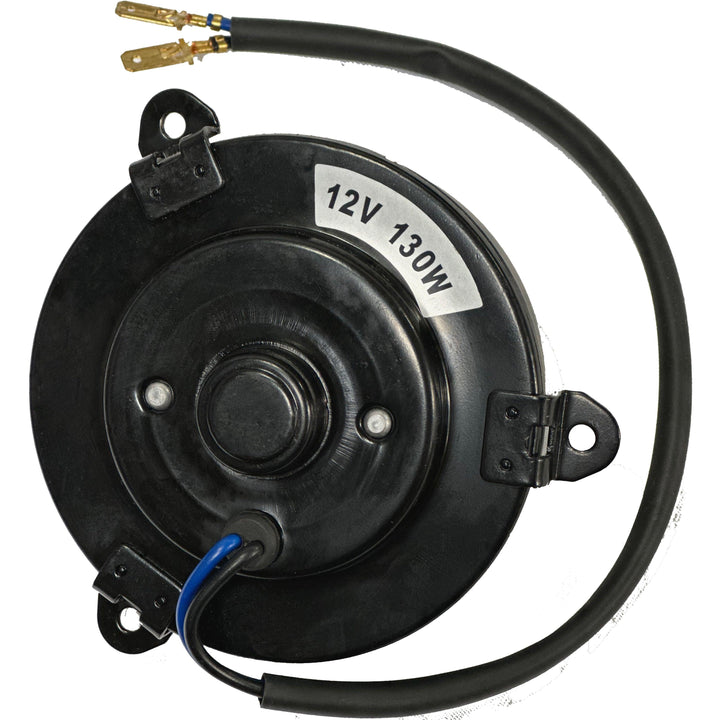

130 Watt, 3-Hole:

• Distance between each hole is 4" inches.
• Diameter of the motor housing is 4.25" inches.
• Motor shaft end to end length is 3" inches.
• Standard equipment on our 10-17 inch fans.
• Fits electric fan shrouds with a 3 bolt pattern.

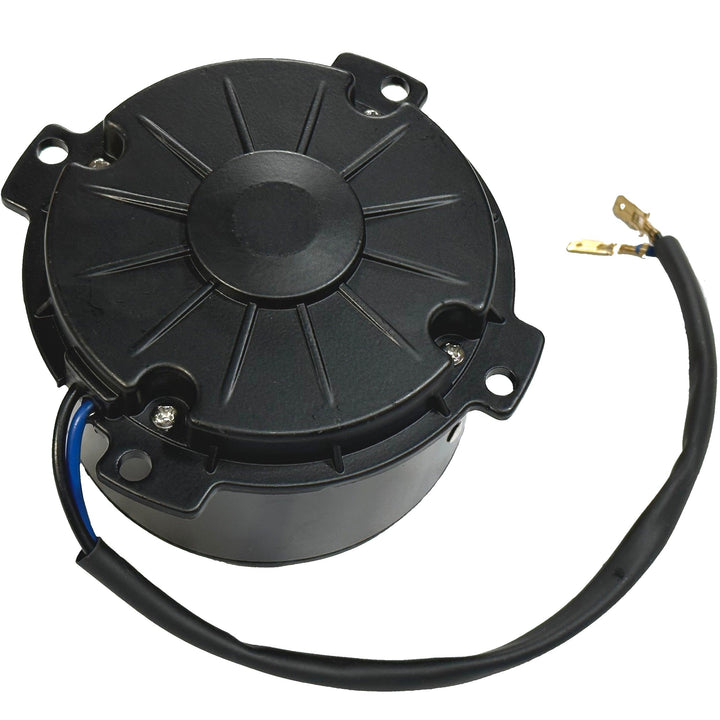

180 Watt, 4-Hole:

• Distance between each hole is 4" inches.
• Diameter of the motor housing is 4.25" inches.
• Motor shaft end to end length is 4" inches.
• Standard equipment on our 12-17 inch fans.
• Fits electric fan shrouds with a 4 bolt pattern.
