Description

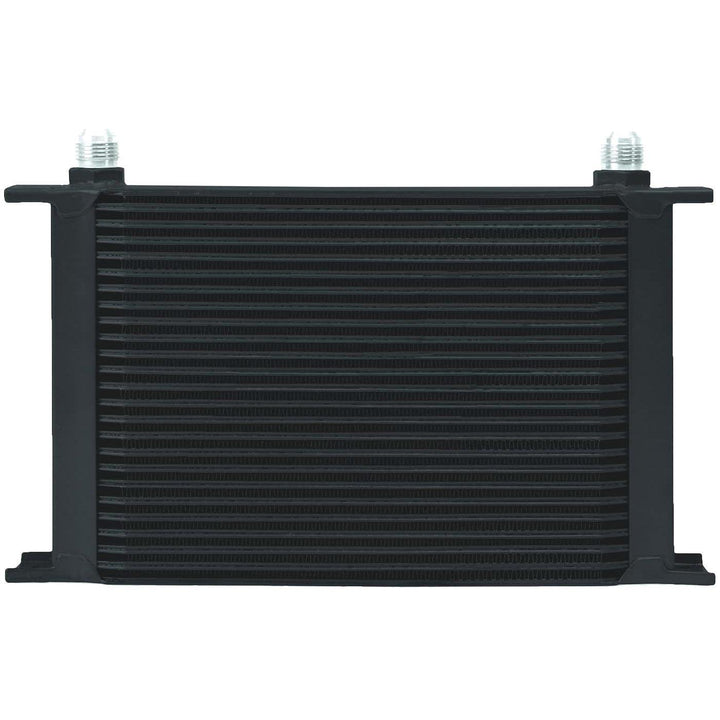

Fluid Cooler:
- Universal 25 stacked plate aluminum heavy duty engine transmission cooler.
- Minimal pressure drop and to be used for engine, transmission or fuel cooling.

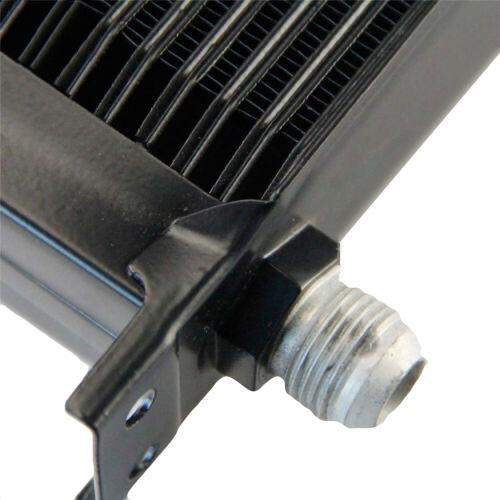

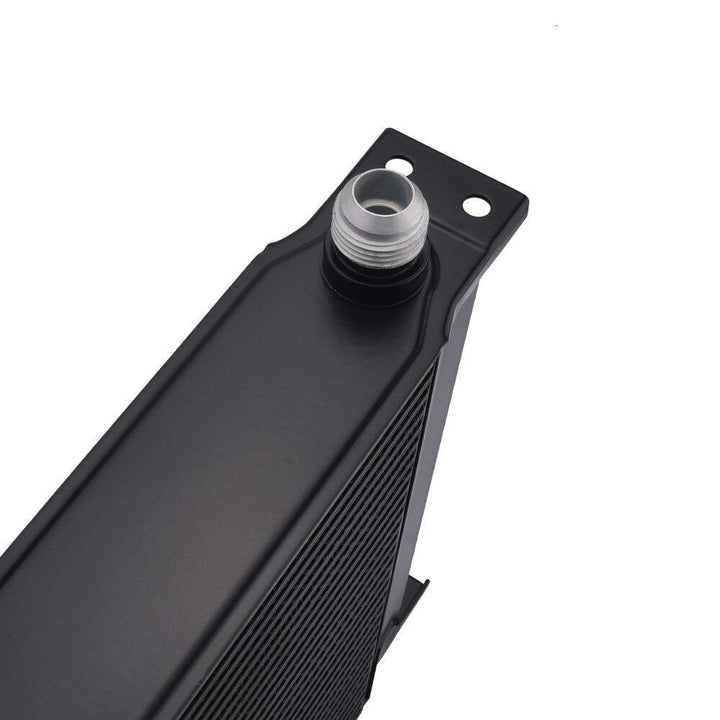

- Furnace brazed aluminum construction with 4 integrated mounting brackets.
- Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
- Dimensions: 2" x 8.2" x 13" with AN hose fittings and 46000 BTU per hour.

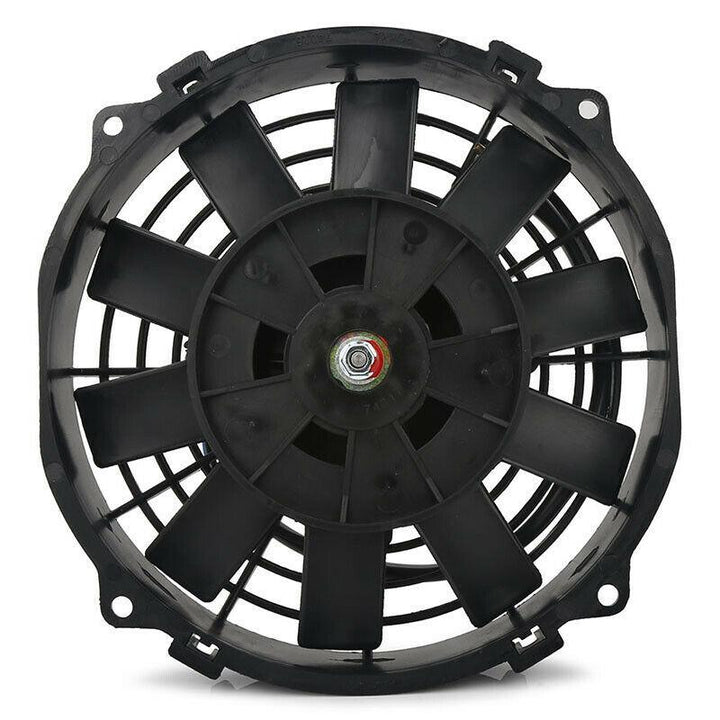

Electric Fan:
- Universal 12 volt high performance 6" inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

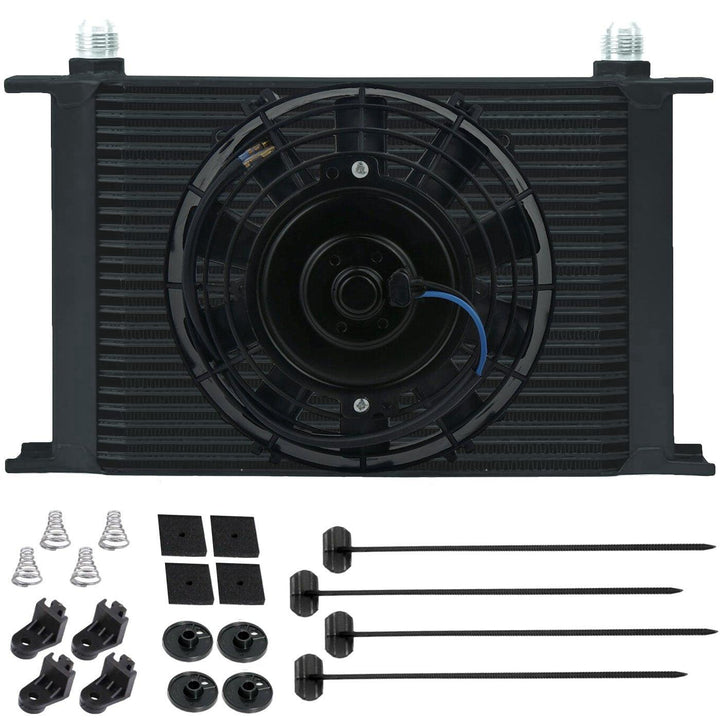

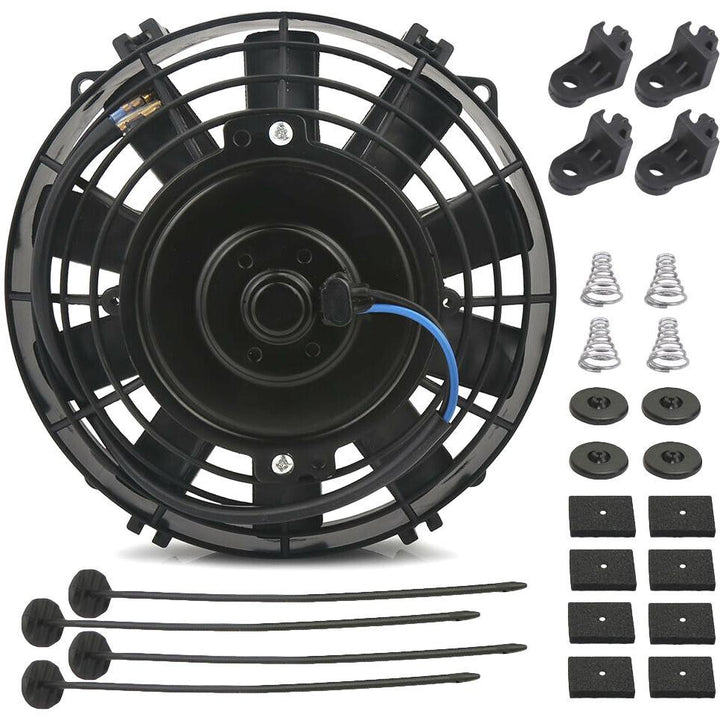

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.
