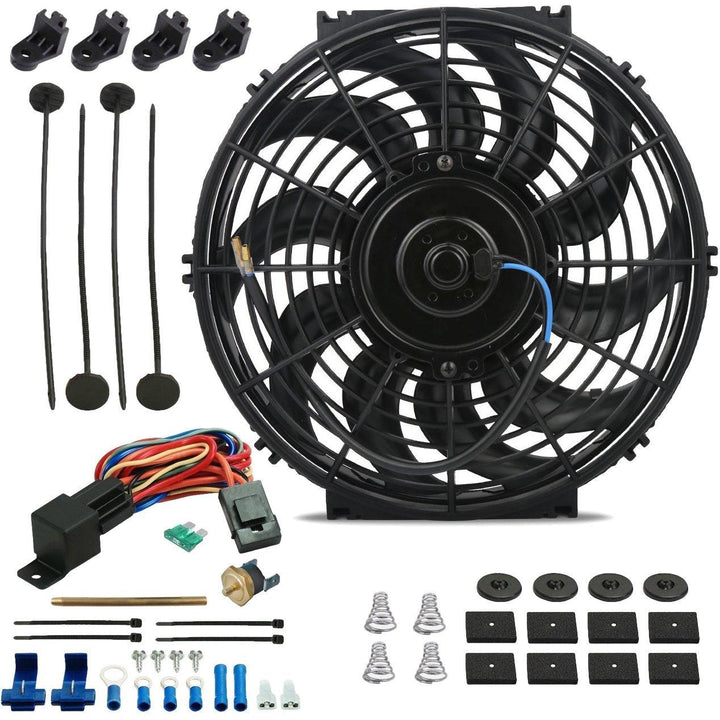

Description

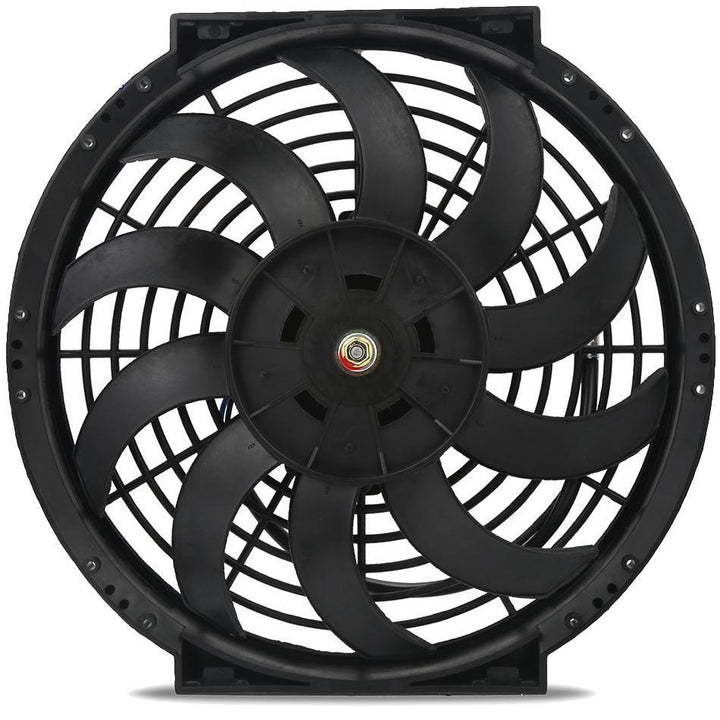

Electric Fan:
- Universal 12 volt performance 12" inch electric radiator cooling fan.
- Upgraded 90 watt motor draws 9 amps, producing over 2197 CFM.
- Configured as an air puller by default or reversible to an air pusher.

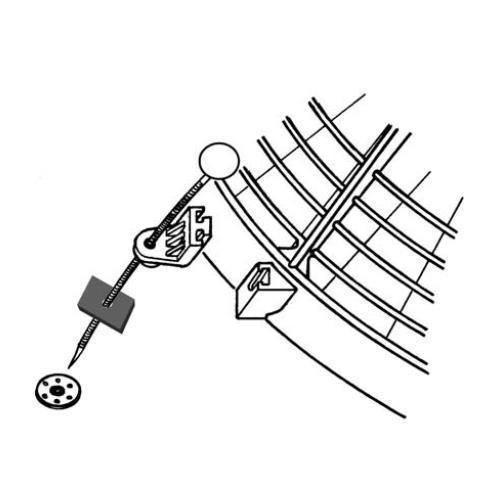

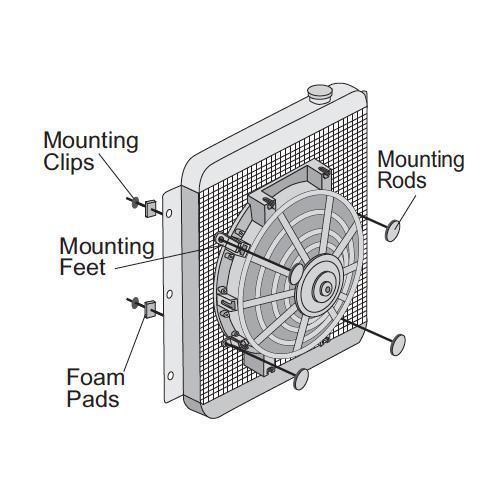

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 12.5" x 11.75" x 2.5" thickness at center and 1.5" at edge.

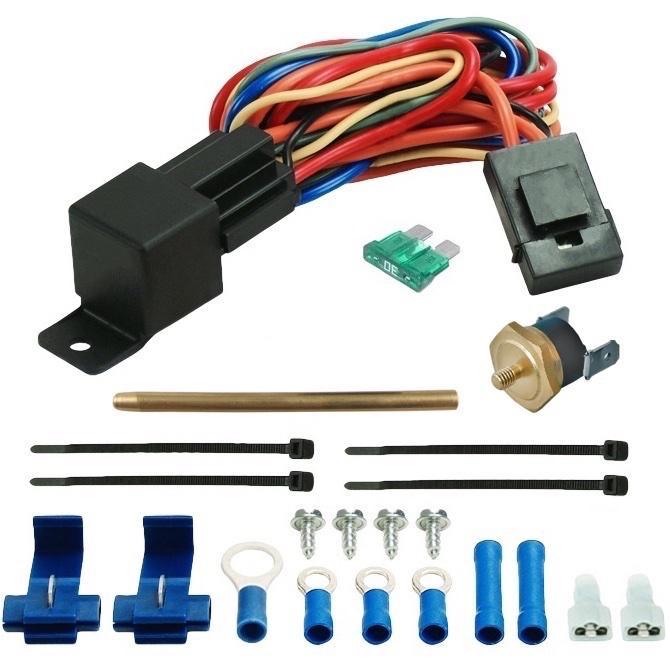

Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal dual pin electric cooling fan powering thermostat switch.
- Solid brass push-in fin probe temperature sensor can be cut to size.
- Preset to power fan or 12v accessory at the selected temperature.

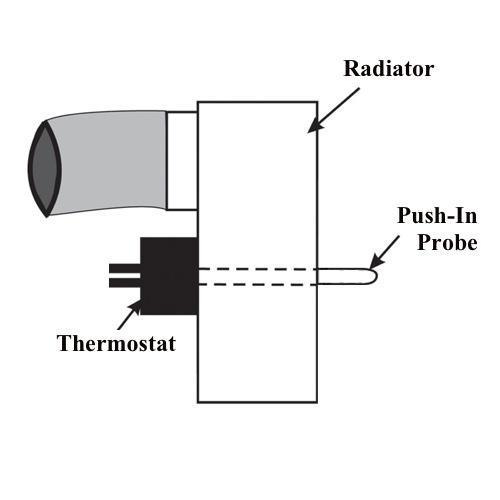

- Probe pins the switch to radiator, engine or transmission cooler fins.
- Measures temp of auto liquids including oil, water and coolant fluid.
