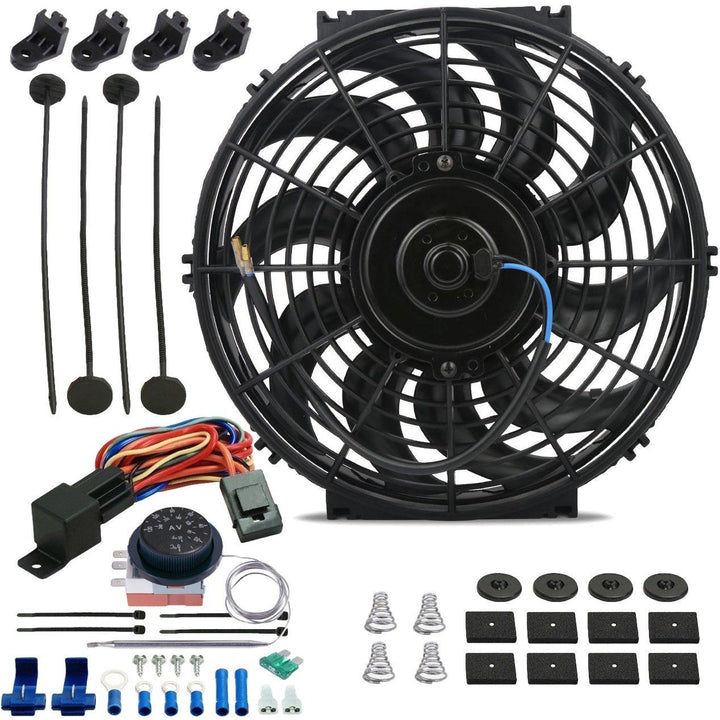

12-13 Inch 90w Electric Cooling Fan Adjustable Thermostat Wiring Switch Kit

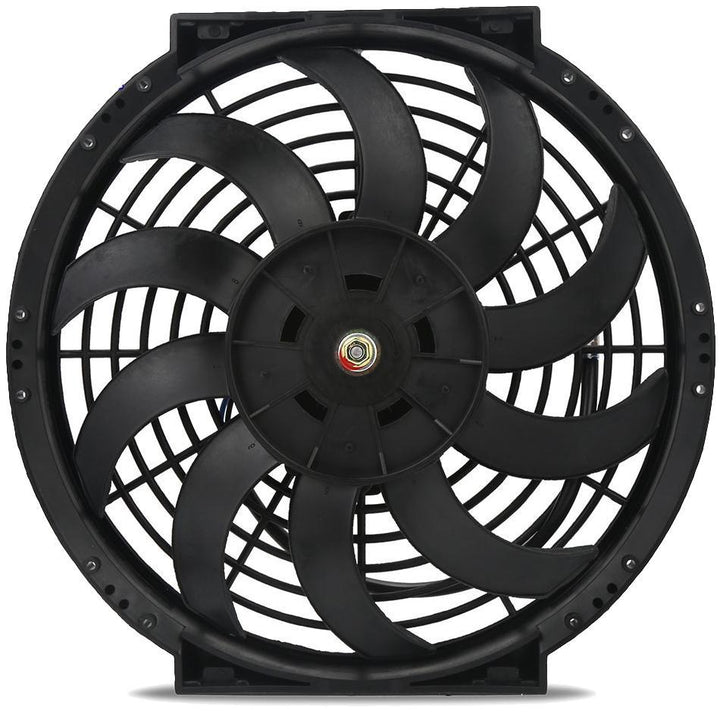

Electric Fan:

• Universal 12 volt performance 12" inch electric radiator cooling fan.
• Upgraded 90 watt motor draws 9 amps, producing over 2197 CFM.
• Configured as an air puller by default or reversible to an air pusher.
• Includes mounting bracket feet and complete cooler fin tie strap kit.
• Measures 12.5" x 11.75" x 2.5" thickness at center and 1.5" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.

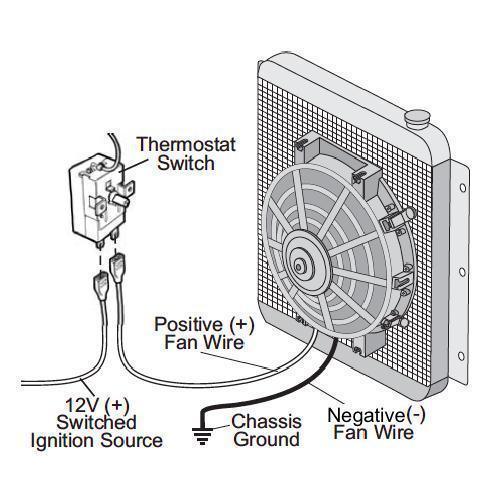

• Installation instructions, wiring diagram and components included.

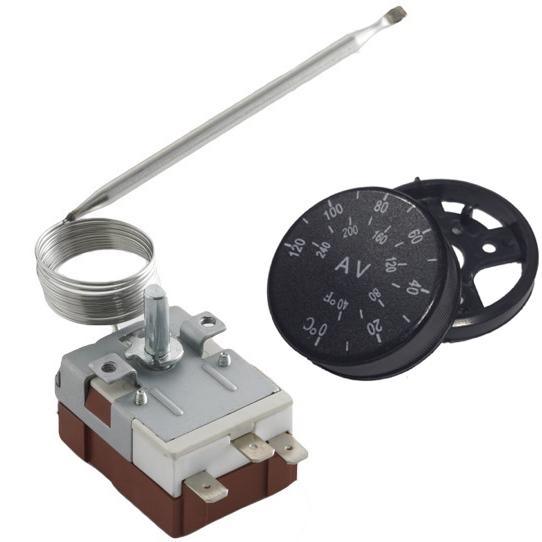

Thermostat:

• Universal adjustable automotive electric fan thermostat switch sensor.
• Turn-on range of 32-248'F with turn-off always set at 15 degrees less.
• 3 pin design allows for wiring as a normally open or closed circuit.

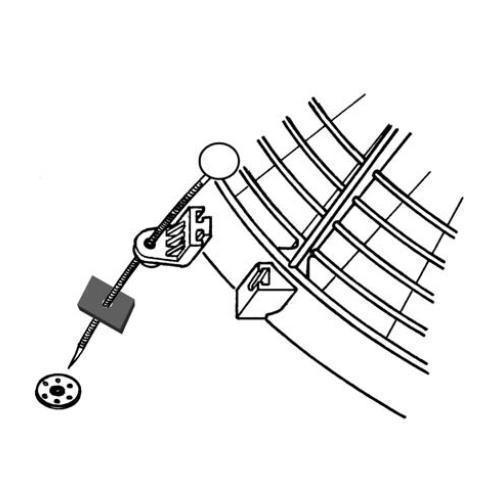

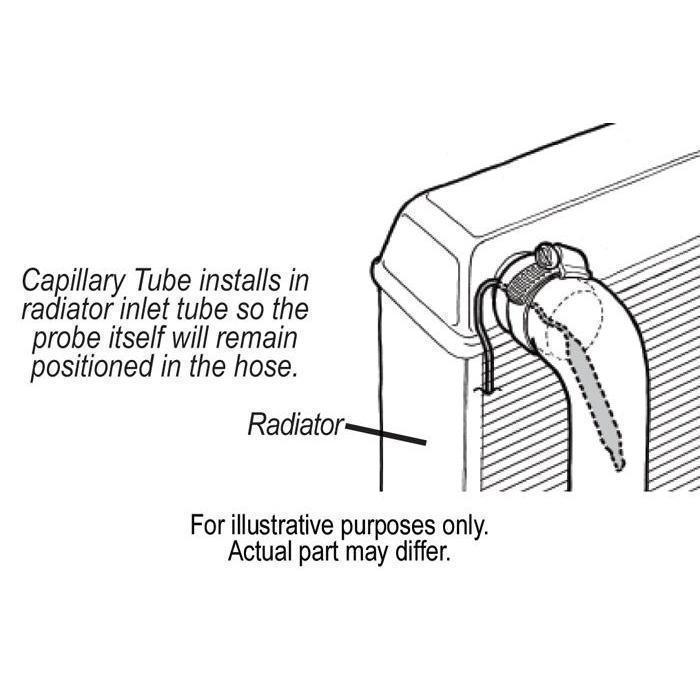

• Probe pushes between radiator fins or inserts into coolant hose line.
• Detailed install instructions, wiring diagram and hardware included.
