Description

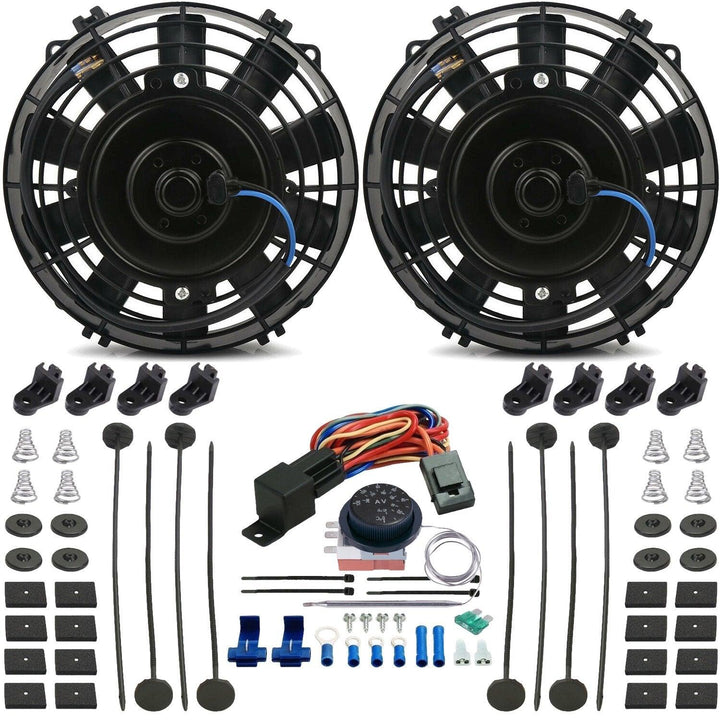

Each Electric Fan:

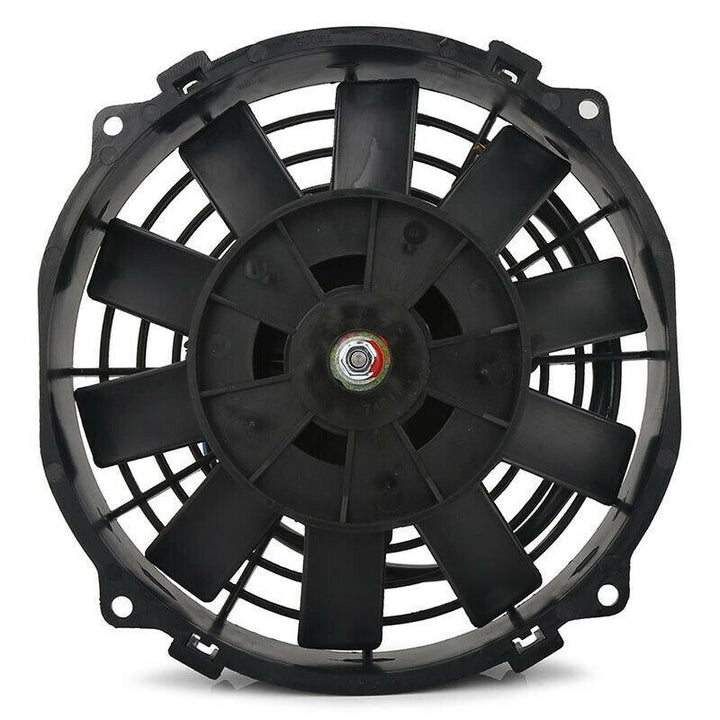

- Reversible 12 volt high performance 7-8 inch electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as air puller by default and reversible to an air pusher.

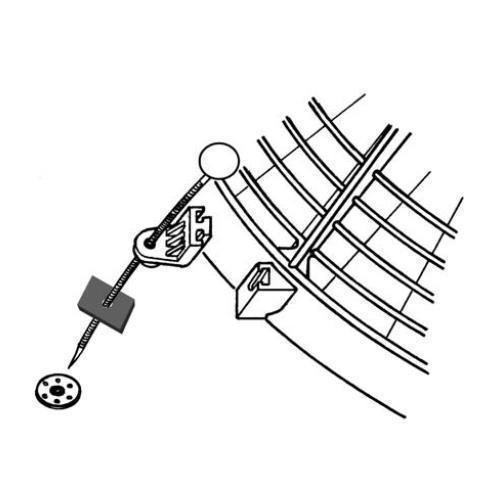

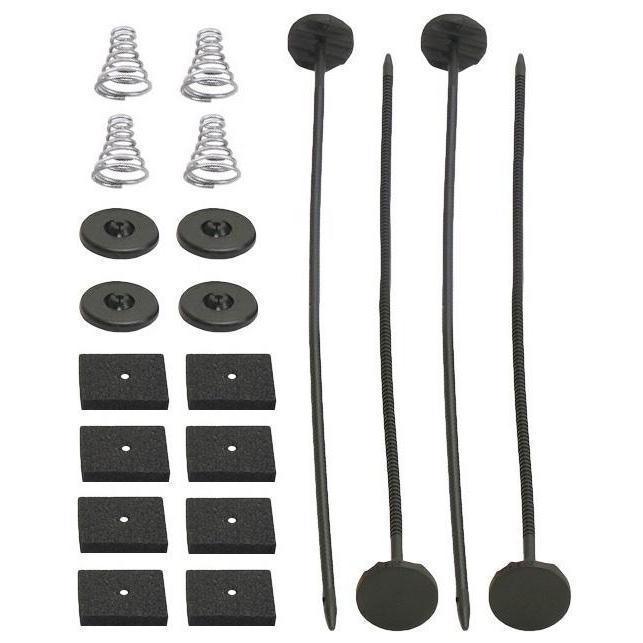

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.
Wiring Kit:

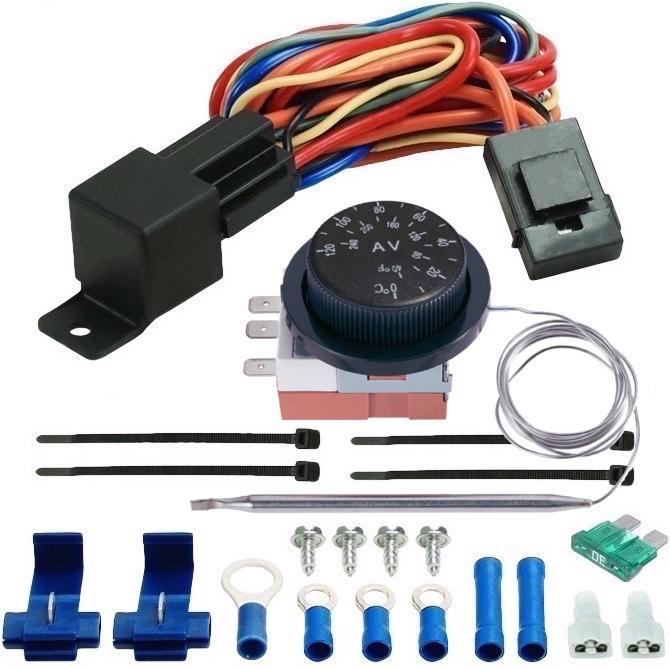

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:

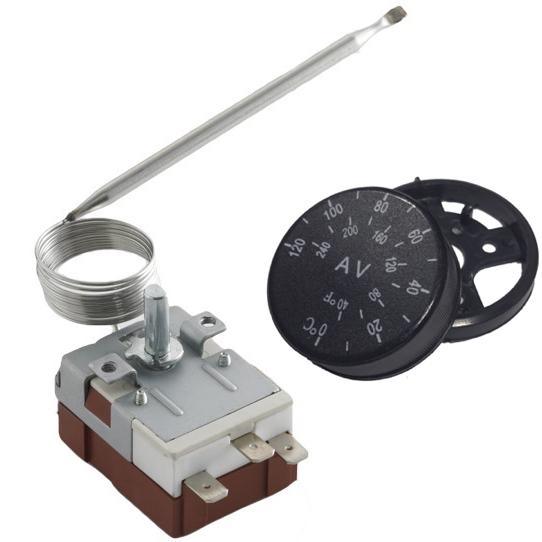

- Universal adjustable automotive electric fan thermostat switch sensor.
- Turn-on range of 32-248'F with turn-off always set at 15 degrees less.
- 3 pin design allows for wiring as a normally open or closed circuit.

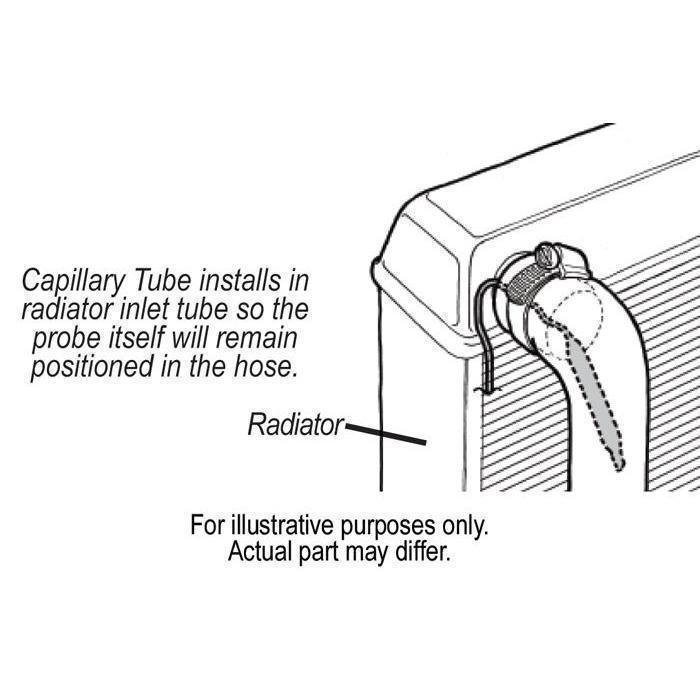

- Probe pushes between radiator fins or inserts into coolant hose line.

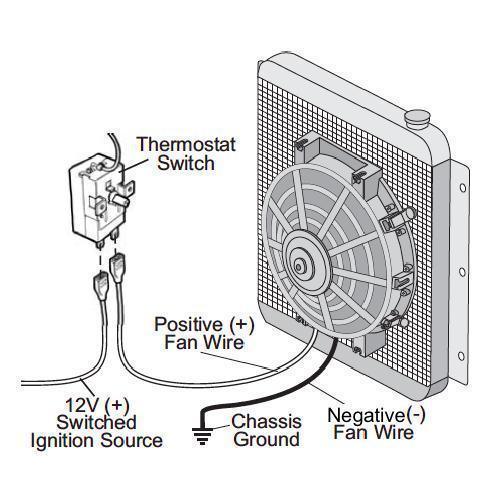

- Detailed install instructions, wiring diagram and hardware included.
