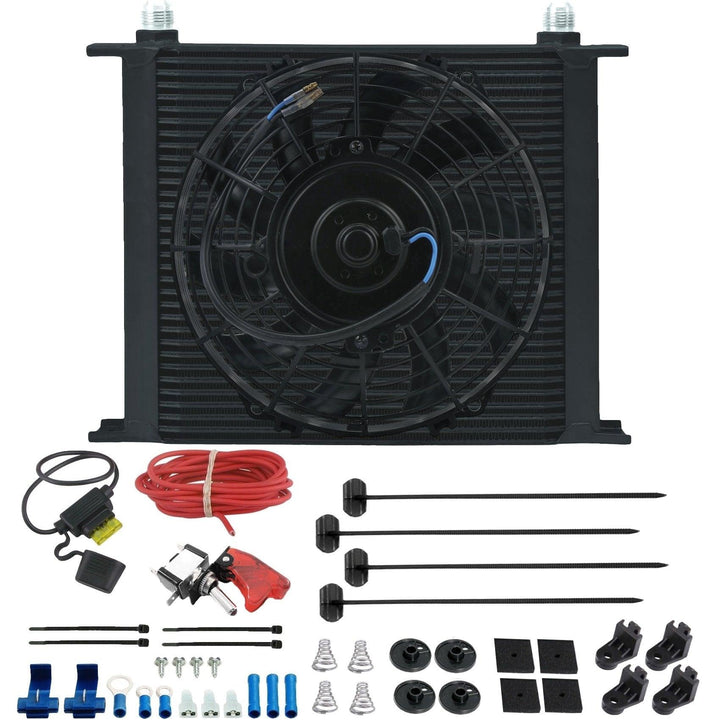

Description

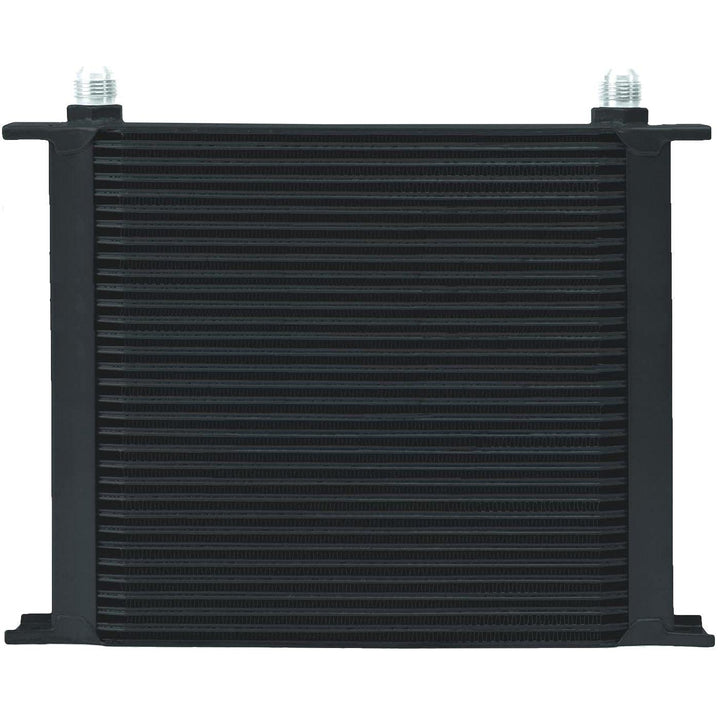

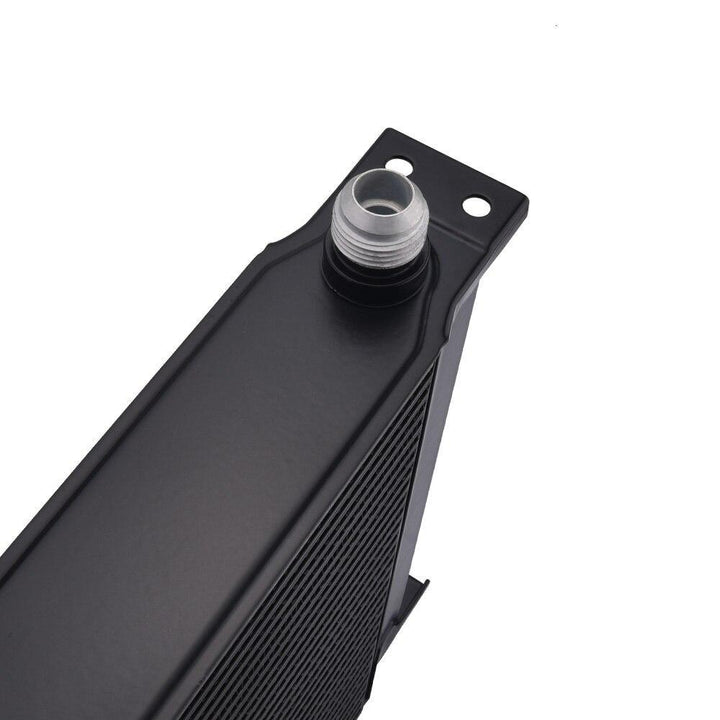

Fluid Cooler:
- Universal 34 stacked plate aluminum heavy duty engine transmission cooler.
- Minimal pressure drop and to be used for engine, transmission or fuel cooling.
- Furnace brazed aluminum construction with 4 integrated mounting brackets.
- Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
- Dimensions: 2" x 10.9" x 13" with AN hose fittings and 56000 BTU per hour.

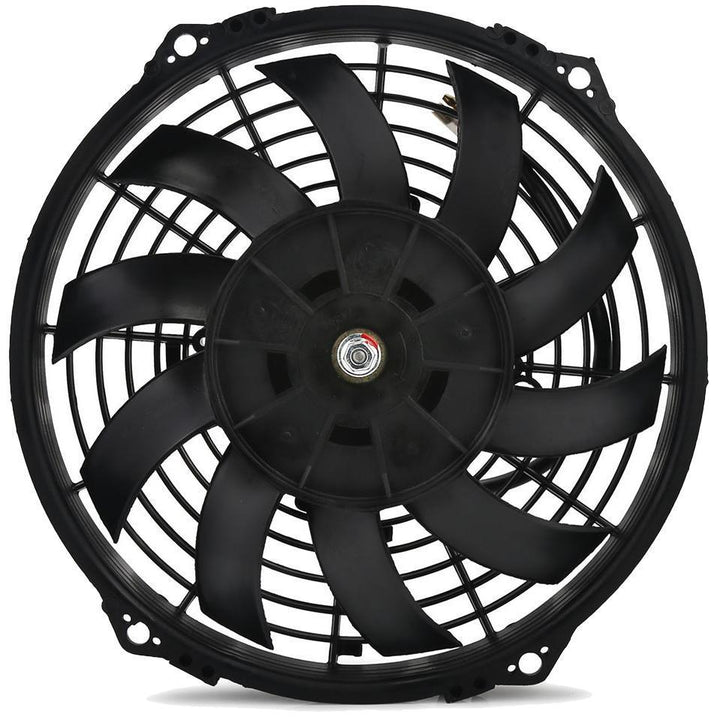

Electric Fan:
- Universal 12 volt high performance 9" inch slim electric cooling fan.
- Upgraded 90 watt motor draws 8 amps, producing over 702 CFM.
- Configured as an air puller by default or reversible to an air pusher.

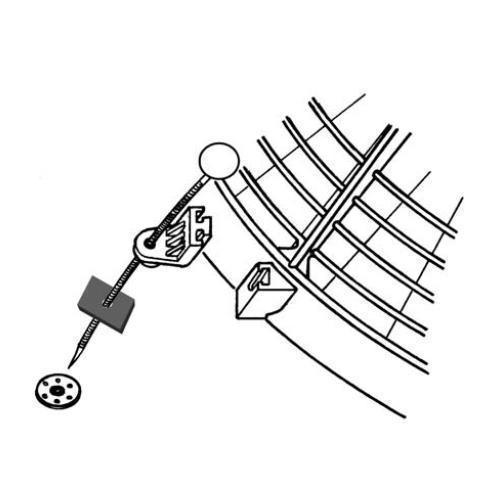

- Includes mounting bracket feet and complete cooler fin tie strap kit.
- Measures 9.75" x 9.75" x 2.4" thickness at center and 1.1" at edge.

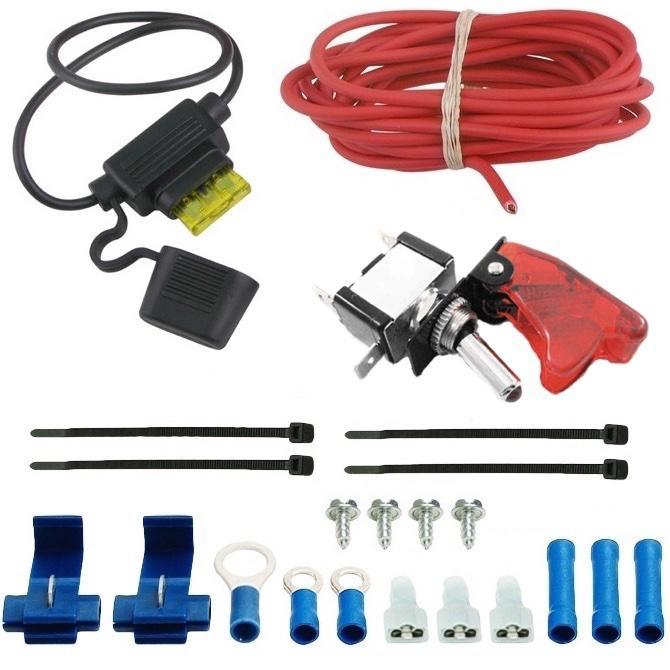

Wiring Kit:
- Universal electric fan or automotive accessory wire harness kit.
- Safely powers one 12 volt fan or auto accessory without splicing.

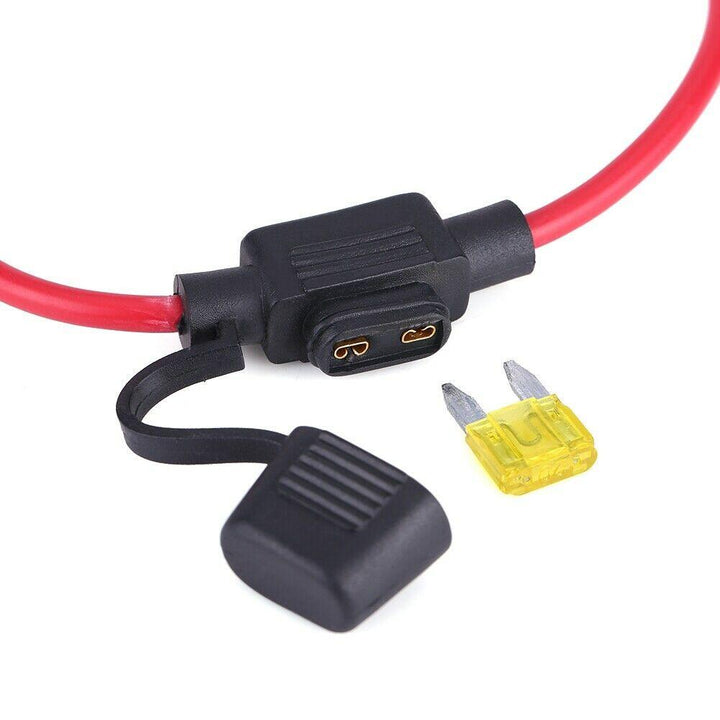

- Maximum 20 amp continuous draw with in-line fuse protection.
- Standard 7 feet of 14AWG size wiring allows mounting flexibility.
- Installation instructions and all pictured components included.
