Description

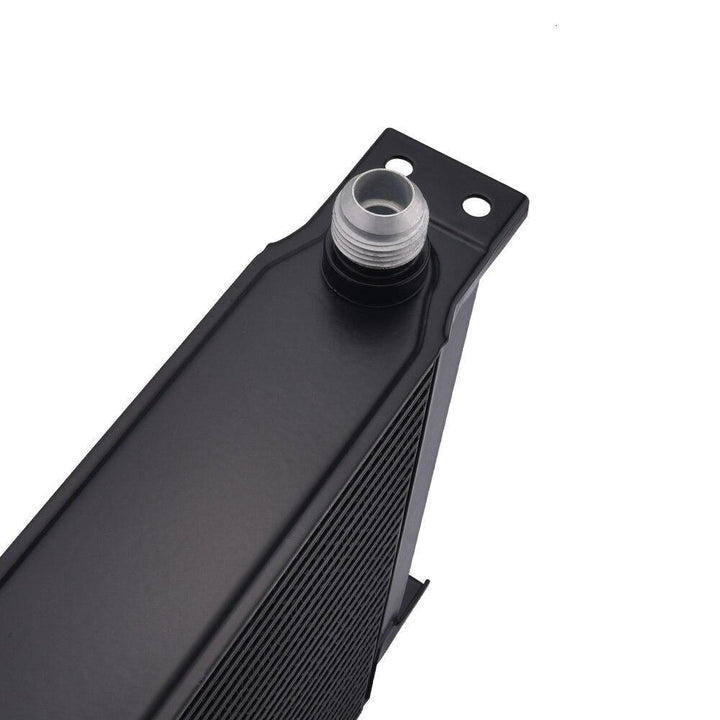

Fluid Cooler:
- 30 row stacked plate black aluminum heavy duty engine transmission cooler.
- Minimal pressure drop and to be used for engine, transmission or fuel cooling.
- Furnace brazed aluminum construction with 4 integrated mounting brackets.
- Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
- Dimensions: 2" x 9.8" x 13" with AN hose end fittings and 50000 BTU per hour.
- Oil cooler full capacity: 0.74L; Test pressure: 116psi and Burst pressure: 232psi.
Electric Fan:
- Universal 12 volt high performance 8" inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

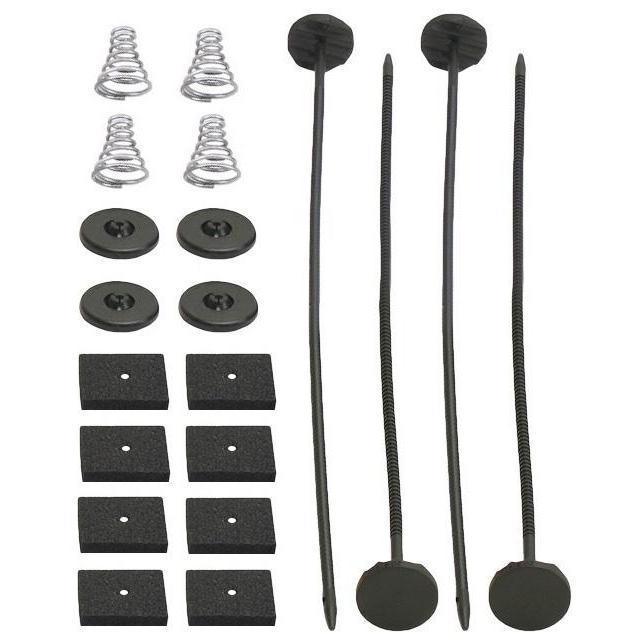

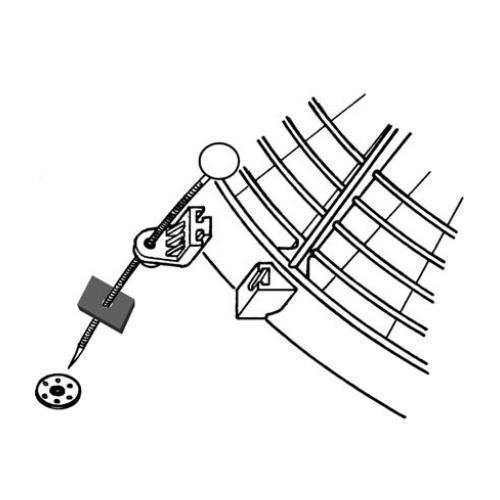

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.

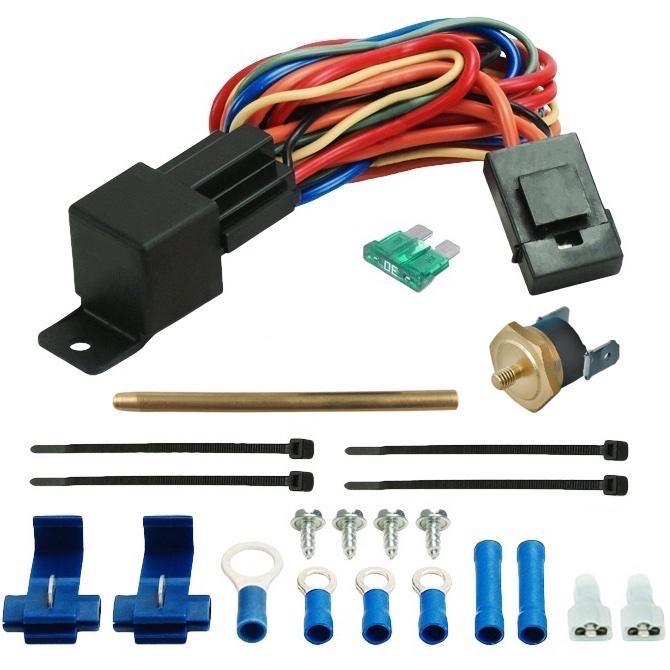

Wiring Kit:

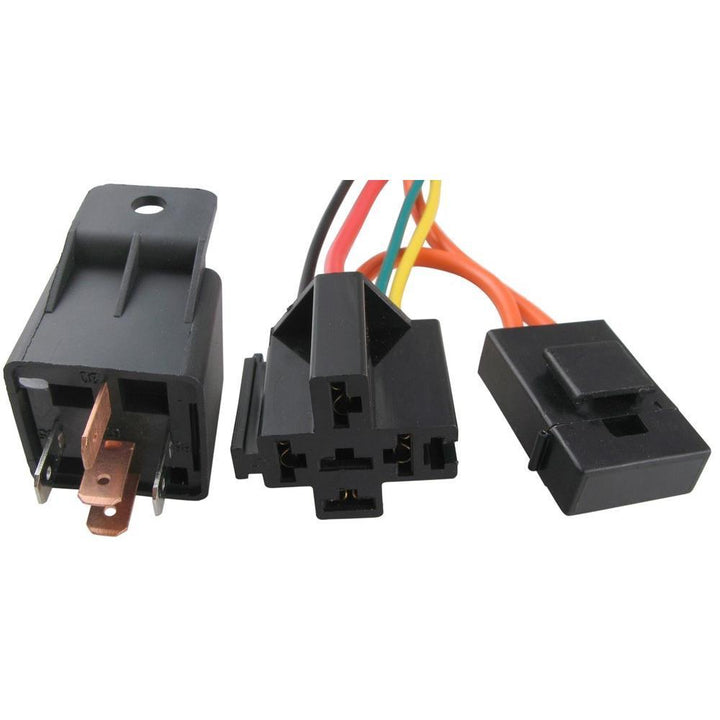

- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.
Thermostat:
- Universal dual pin electric cooling fan powering thermostat switch.
- Solid brass push-in fin probe temperature sensor can be cut to size.
- Preset to power fan or 12v accessory at the selected temperature.

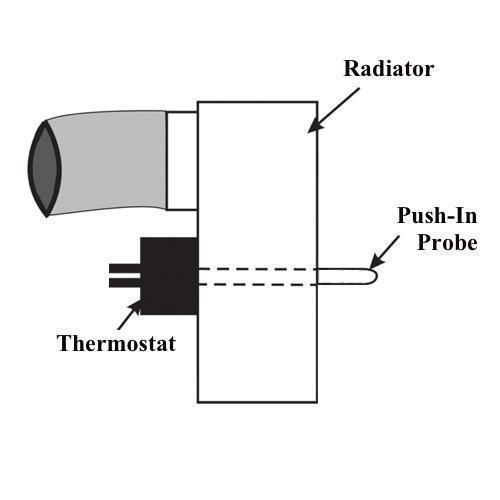

- Probe pins the switch to radiator, engine or transmission cooler fins.
- Measures temp of auto liquids including oil, water and coolant fluid.
