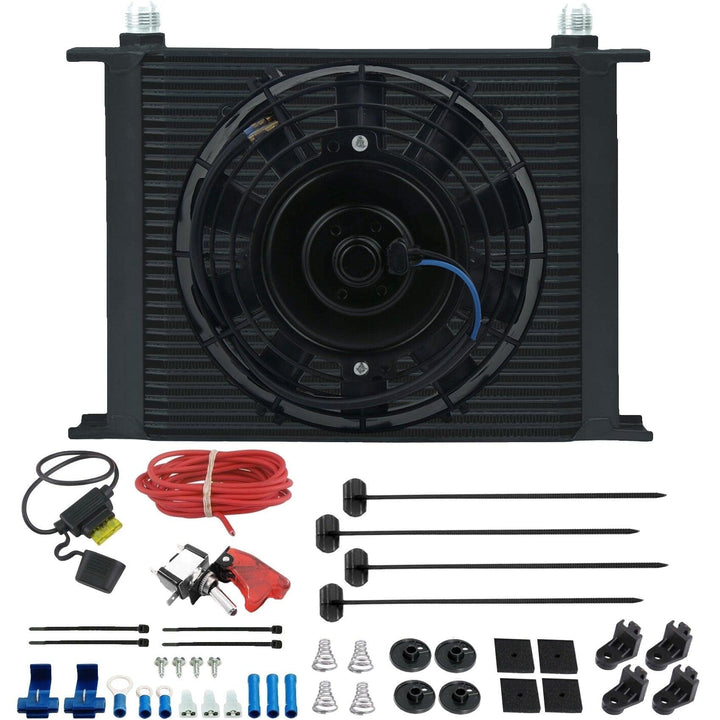

Description

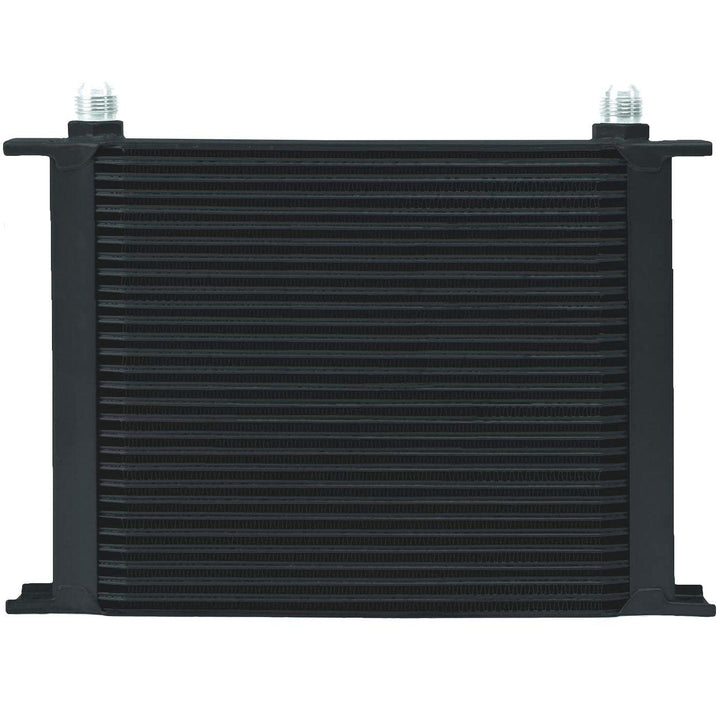

Fluid Cooler:
- 30 row stacked plate black aluminum heavy duty engine transmission cooler.
- Minimal pressure drop and to be used for engine, transmission or fuel cooling.

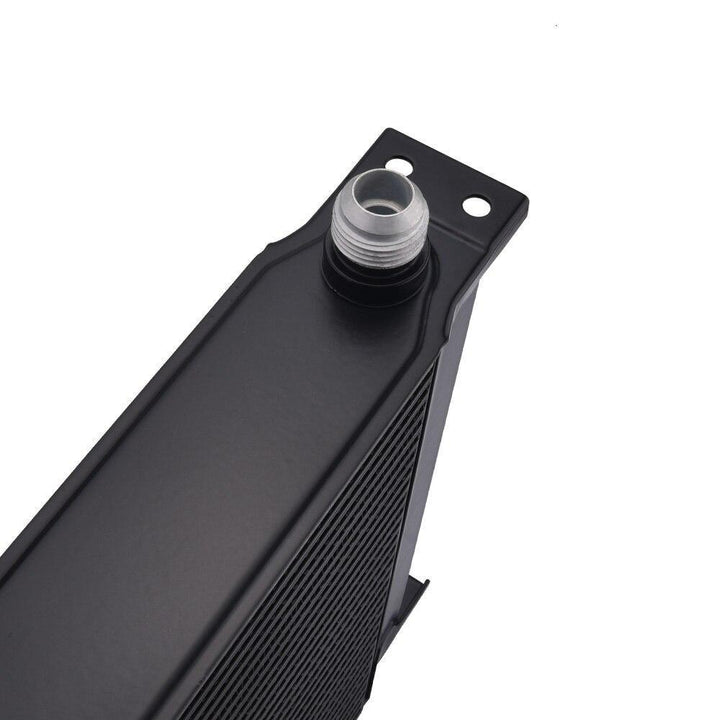

- Furnace brazed aluminum construction with 4 integrated mounting brackets.
- Full 2" deep turbulator-equipped plates and a matte black powder coat finish.
- Dimensions: 2" x 9.8" x 13" with AN hose end fittings and 50000 BTU per hour.
- Oil cooler full capacity: 0.74L; Test pressure: 116psi and Burst pressure: 232psi.

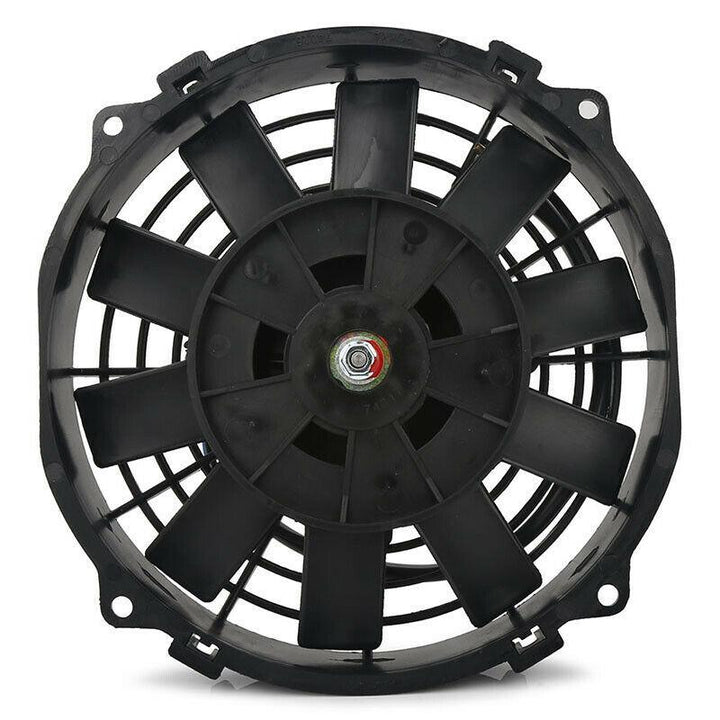

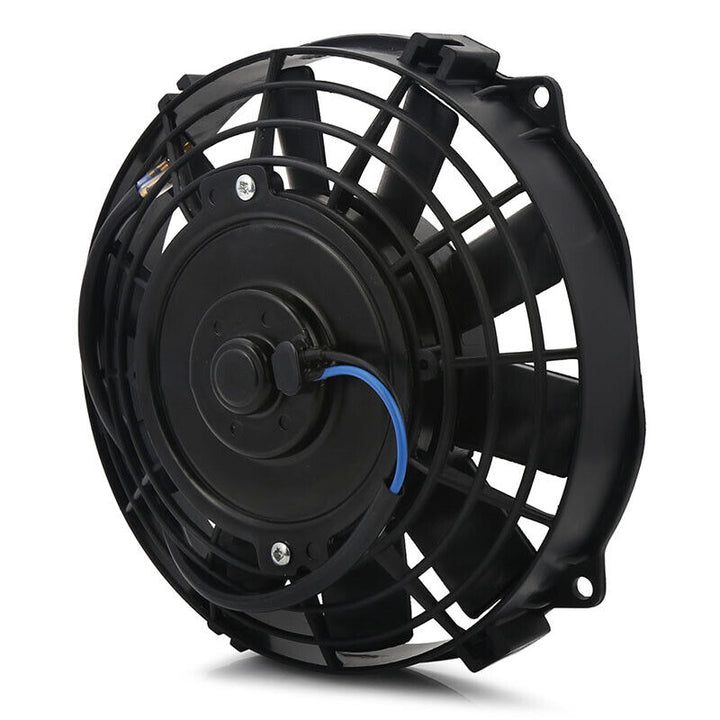

Electric Fan:
- Universal 12 volt high performance 8" inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

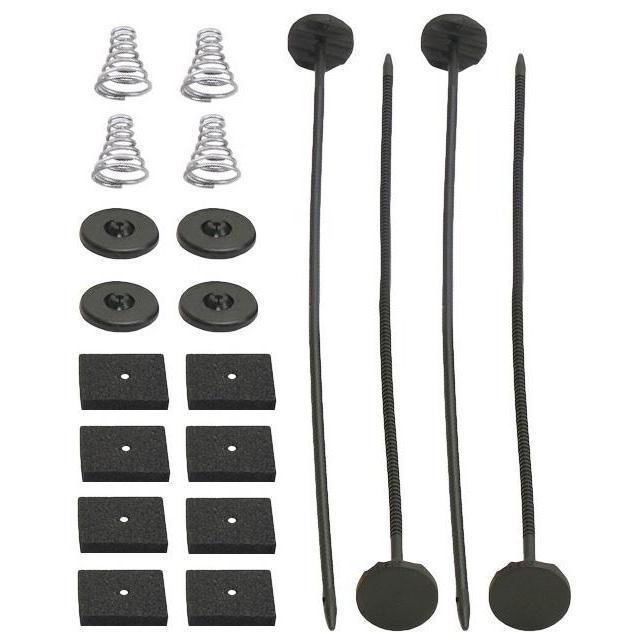

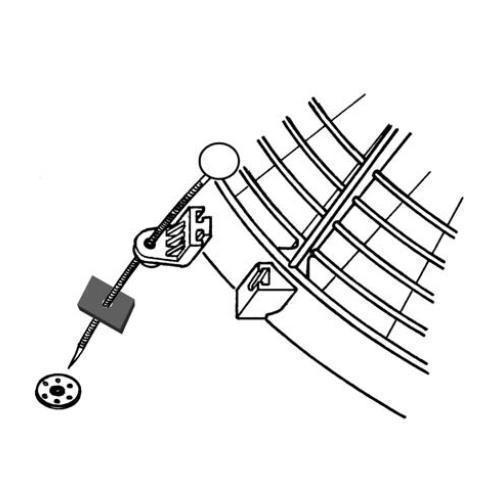

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 8.5" x 7.75" x 2.4" thickness at center and 1.4" at edge.
Wiring Kit:
- Universal electric fan or automotive accessory wire harness kit.
- Safely powers one 12 volt fan or auto accessory without splicing.

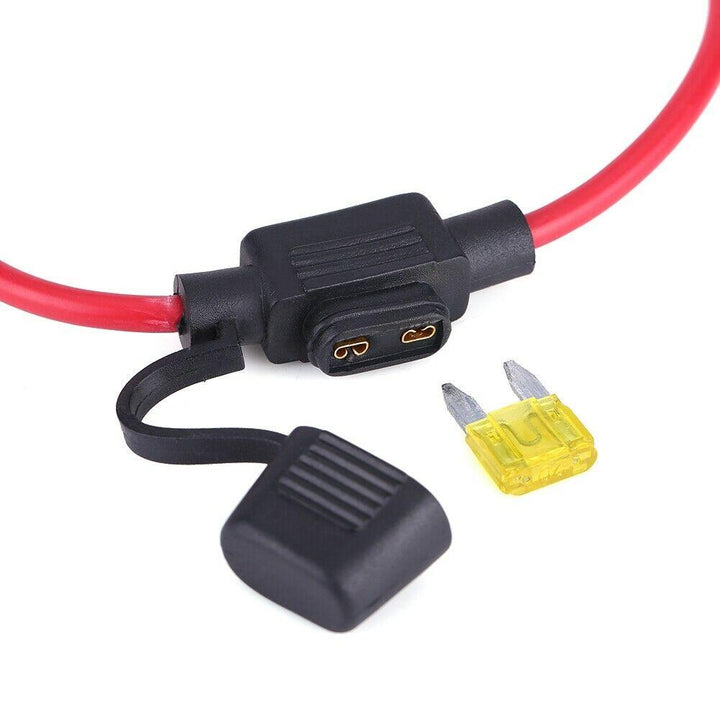

- Maximum 20 amp continuous draw with in-line fuse protection.
- Standard 7 feet of 14AWG size wiring allows mounting flexibility.
- Installation instructions and all pictured components included.
