Description

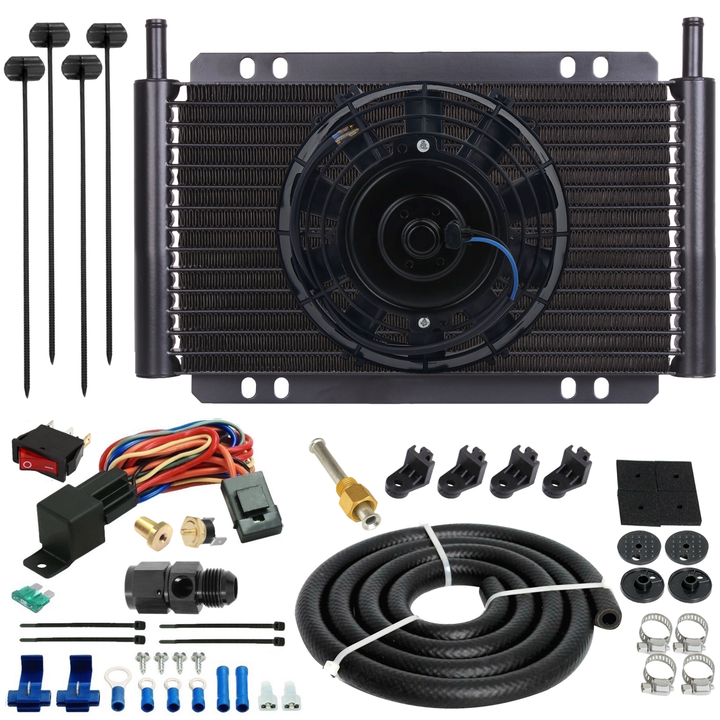

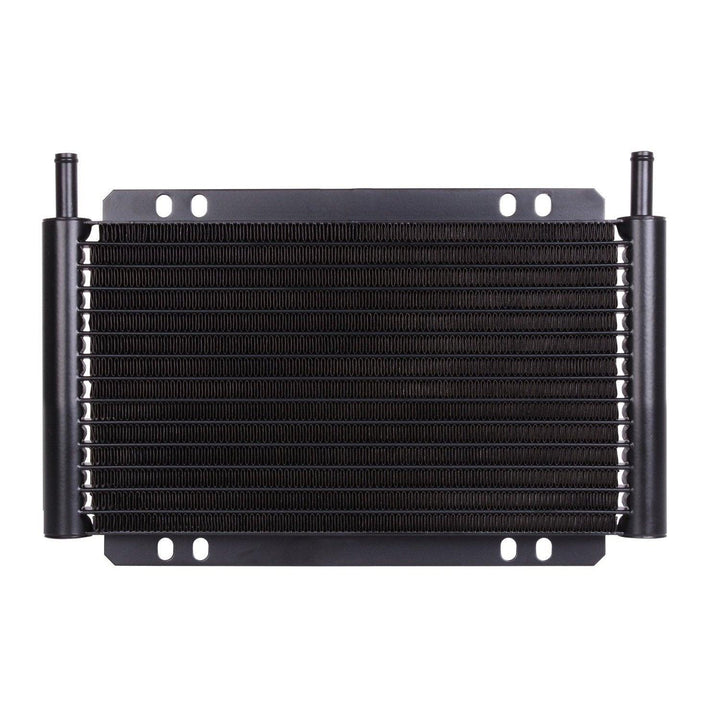

Fluid Cooler:
- Universal 17 row plate and fin aluminum heavy duty transmission cooler kit.
- Extend transmission life by helping prevent heat-related transmission failures.
- Perfect for light to medium duty truck, car or RV use and occasional towing.
- 7/8" wide plates, 3/4" embossed turbulators which maximizes heat transfer.
- Dimensions: 0.75" x 7.5" x 11" with 3/8" hose barb inlets, GVW 18000 lbs.

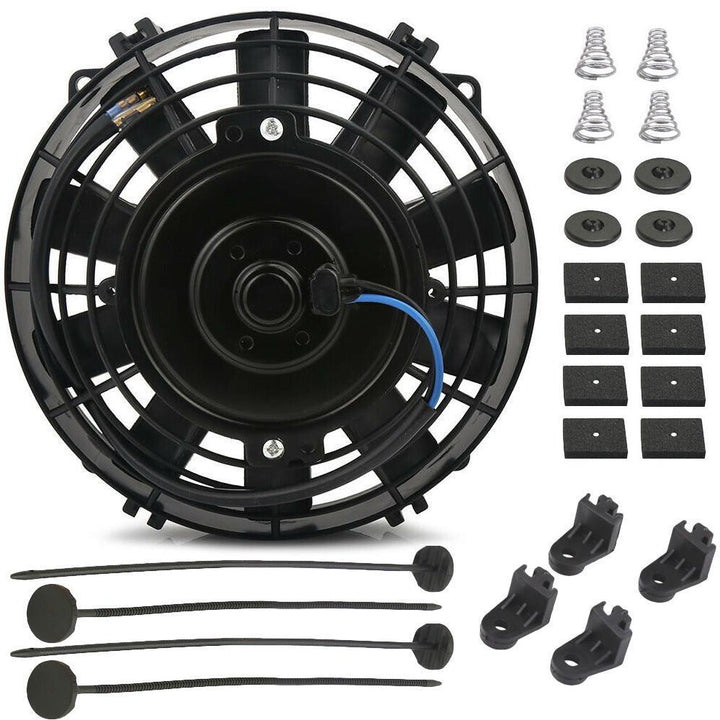

Electric Fan:
- Universal 12 volt high performance 6" inch small electric cooling fan.
- Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
- Configured as an air puller to be on the inside and pull air through.

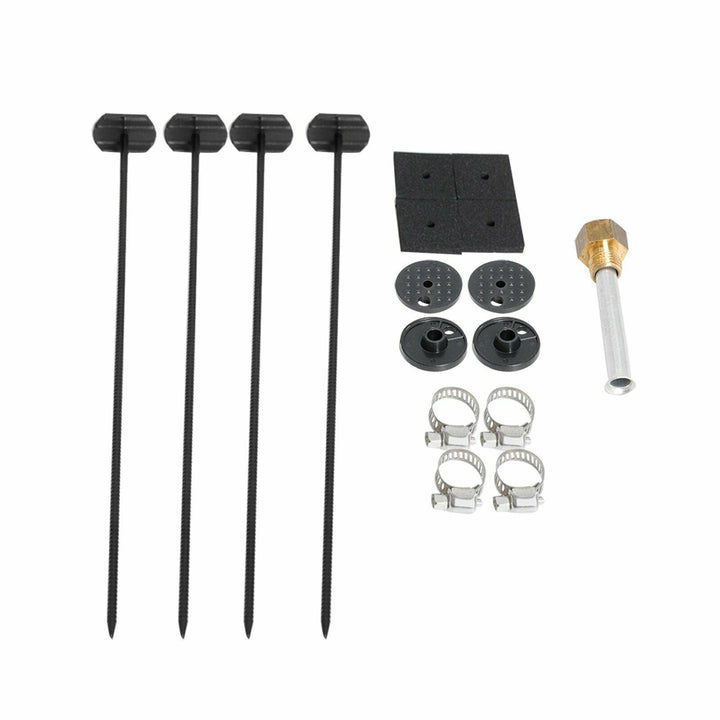

- Includes mounting bracket feet and complete install fin tie strap kit.
- Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.

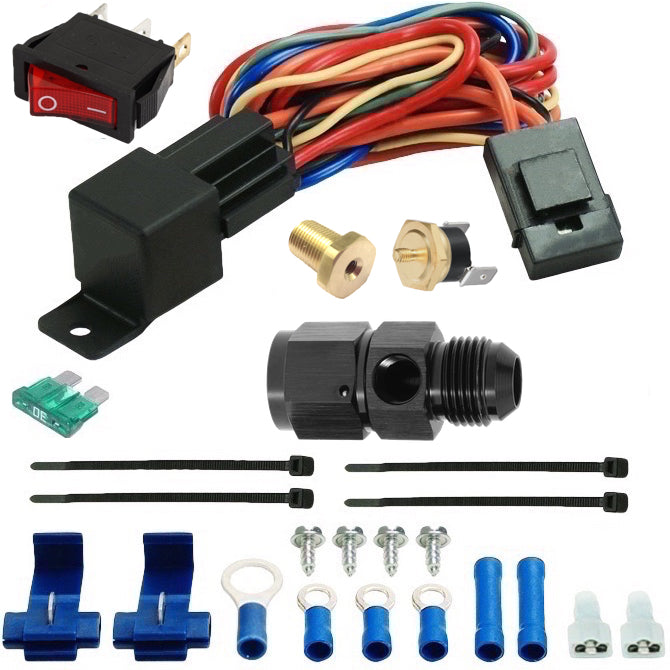

Wiring Kit:
- Universal automotive electric fan 5-pin 40A relay switch harness kit.
- 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
- Maximum 30 amp continuous draw with 30A in-line fuse protection.
- A/C override or manual toggle switch wire built directly into harness.
- Installation instructions, wiring diagram and components included.

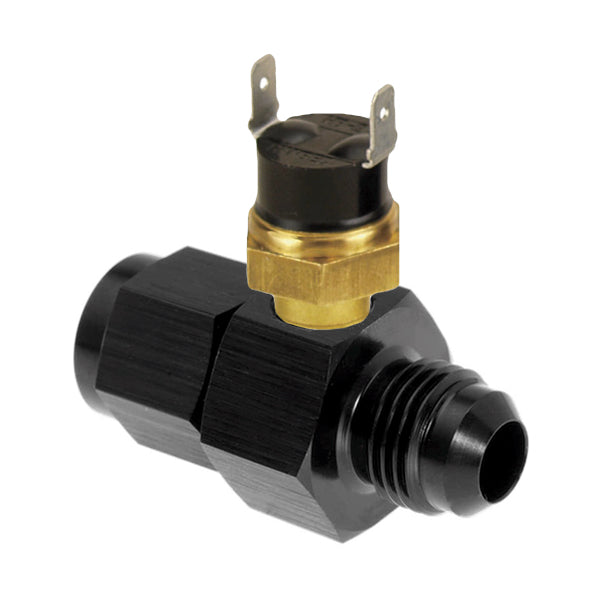

Fitting:
- Universal AN in-line electric fan thermostat temperature switch kit.
- 1/8" inch NPT brass thread-in probe and dual pin disconnect switch.
- Preset to power fan or 12v accessory at the selected temperature.
- Fitting is black anodized aluminum for a corrosion resistant design.
- Measures temp of any liquid including oil, water and coolant fluid.
